Motorcycle Dyno

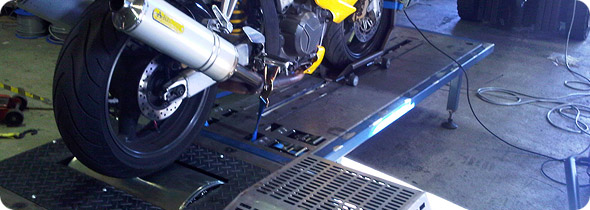

MCD400 Motorcycle Chassis Dynamometer

TEST - ANALYSE - TUNE - REPORT

If you are seeking the most advanced and innovative motorcycle dyno system, then look no further. The Mainline/ DynoLog MCD400 Motorcycle Dyno will take you to the forefront of motorcycle performance measurement technology, and beyond.

The MCD400 model is fully engineered and manufactured in Australia, and features a host of data acquisition inputs and other accessories, specifically designed for advanced testing, data analysis, and tuning of all types of motorcycles.

Motorcycle Applications

• Road Bikes / Competition Bikes
• Off Road / Trail Bikes
• Custom Bikes & Choppers

Features & Benefits

• Low inertia, Single roller design
• High traction roller knurl (also suitable for off road knobby type tyres)
• Automatic & Manual Electronic / Motorised wheelbase adjustment
• Steady State & Dynamic Ramp Test modes
• Full size rolling workstation cabinet assembly with boom arm
• User friendly, Windows 7 based Dyno operating software program
• Remote mounted wireless Dyno controller & LCD monitor screen (Mounted in front of rider)
• Advanced analytical & dedicated tuning tools / test functions
• Multiple numerical & graphical displays
• Virtually unlimited data logging channels available
• Advanced user definable MATHS channels
• Numerous options & accessories available

Performance Measurement Specifications

• 700Kw (940Hp) Power Rating
• 1700Nm (1254ftlbs) Roller Torque Rating
• 300km/h Maximum Test Speed

Standard Inclusions

• Rear approach Motorcycle Ramp (above ground operation)
• Front Wheel Clamp Assembly & Motorcycle Restraint Kit
• Motorised platform / wheelbase adjustment
• Full size rolling workstation cabinet assembly
• Advanced Dyno Control & Data Acquisition System
• Computer Control System - (PC, Colour Printer, Monitor, Windows 7 OS & Dyno Software Program)
• Automatic or remote motorcycle cooling fan control
• Automatic Weather Station (Ambient Temp, Baro Pressure, RH %, Air Density, Power Correction)
• Engine Tacho - Secondary Ignition Inductive Probe
• Engine Tacho - Primary Ignition / Crank Reference Clip Probe (3 - 500V Digital Pulse)
• Engine / Wheel Speed Tacho - Engine Speed derived from motorcycle wheel speed.
• Tacho Trim Module - (Control via logged engine RPM increments- ideal for steady state tuning)
• 2 x MAP / Boost Sensors
• Twin Channel “Wide Band” AFR Meter (Including Motorcycle Exhaust Probes)
• Exhaust Gas Temperature Probe
• Engine Inlet Air Temperature Probe

*Further options available.
